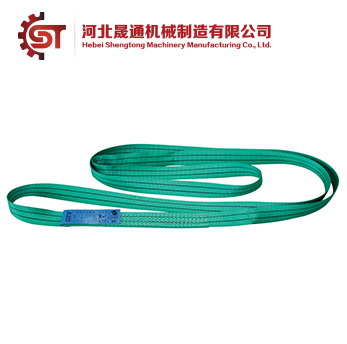

EA-B Round Sling

Inquire Now

EA-B Webbing Sling'Lifting Method And Maximum Safety Working Load Parameter
Max.SWL of Lifting Method=Mode Coefficient PxWorking Load Limit
Code	Color	Single Max,Working Load Limit						2-Legs Max,Working Load Limit				Approx Width (mm)	Min Length (m)	Max Length (m)
		Upright	Choked	β				Upright 45°	Choked 45°	Upright 45°-60°	Choked 45°- 60°
		Upright	Choked	0°- 7°	7°- 45°	45°- 60°	45°	Upright 45°	Choked 45°	Upright 45°-60°	Choked 45°- 60°

		1.0	0.8	2.0	1.4	1.0	0.7	1.4	1.12	1.0	0.8
EA-B-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	40	1	100
EA-B-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	1	100
EA-B-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	60	1	100
EA-B-04	Gray	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	70	1	100
EA-B-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	75	1	100
EA-B-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	80	1	100
EA-B-08	Orange	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	90	1	100
EA-B-10	Orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	100	1	100
EA-B-12	Orange	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	110	1	100
EA-B-15	Orange	15000	12000	30000	21000	15000	10500	21000	16800	15000	12000	150	1	100
EA-B-20	Orange	20000	16000	40000	28000	20000	14000	28000	22400	20000	16000	180	1	100
EA-B-25	Orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	200	1	100
EA-B-30	Orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	200	1	100
EA-B-40	Orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000	200	1	100
EA-B-50	Orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000	220	1	100
EA-B-60	Orange	60000	48000	120000	84000	60000	42000	84000	67200	60000	48000	220	1	100
EA-B-80	Orange	80000	64000	160000	112000	80000	56000	112000	89600	80000	64000	260	1	100
EA-B-100	Orange	100000	80000	200000	140000	100000	70000	140000	112000	100000	80000	290	1	100
