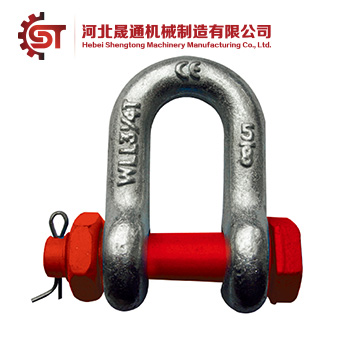

U.S D Type Shackle (G2150)

U.S D Type Shackle (G2150) U.S D Type Shackle (G2150)

U.S D Type Shackle (G210)

Size
(in)
W.L.L
(t)
Weight
(Ibs.)
Dimensions(in)Tolerance +/-
ABCDEFGKLMGA
1/41/20.110.470.310.250.250.970.620.971.590.191.430.060.06
5/163/40.170.530.380.310.311.150.751.071.910.221.710.060.06
3/810.280.660.440.380.381.420.921.282.310.252.020.130.06
7/161-1/20.430.750.50.440.441.631.061.482.670.312.370.130.06
1/220.590.810.630.50.51.811.181.663.030.382.690.130.06
5/83-1/41.251.060.750.630.632.321.52.043.760.443.340.130.06
3/44-3/42.631.250.880.810.752.751.812.44.530.53.970.250.06
7/86-1/23.161.4410.970.883.22.12.865.330.54.50.250.06
18-1/24.751.691.13113.692.383.245.940.565.130.250.06
1-1/89-1/26.751.811.251.251.134.072.693.616.780.635.710.250.13
1-1/4129.092.031.381.381.254.5333.977.50.696.250.250.13
1-3/813-1/211.632.251.51.51.385.013.314.438.280.756.830.250.13
1-1/21715.952.381.631.621.55.383.624.849.050.817.330.250.13
1-3/42526.752.8822.121.756.384.195.7810.9719.060.250.13
23542.313.252.252.362.17.2556.7712.741.2210.350.250.13
2-1/25571.754.122.752.632.639.385.688.0714.851.38130.250.25
