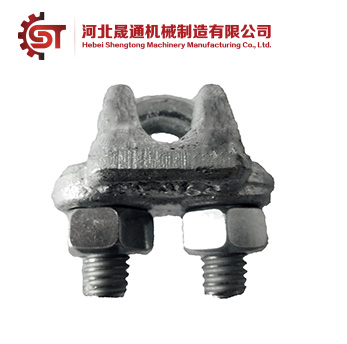

| U.S. TYPE DROP FORGED WIRE ROPE CLIP | ||||||||
| FF-C-450 TYPE 1 CLASS 1 | ||||||||
| Size (in) | A | B | C | D | E | F | G | Weight kg/100pcs |
| 1/8 | 12 | 20 | 11 | 7/32 | 10 | 23 | 18 | 2.3 |
| 3/16 | 15 | 23 | 14 | 1/4 | 12 | 29 | 24 | 4 |
| 1/4 | 19 | 30 | 15 | 5/16 | 16 | 36 | 26 | 8 |
| 5/16 | 22 | 33 | 19 | 3/8 | 18 | 43 | 35 | 14 |
| 3/8 | 25 | 41 | 19 | 7/16 | 23 | 49 | 38 | 19 |
| 7/16 | 30 | 46 | 25 | 1/2 | 26 | 58 | 47 | 31.2 |
| 1/2 | 30 | 48 | 25 | 1/2 | 28 | 58 | 47 | 34 |
| 9/16 | 33 | 52 | 32 | 9/16 | 31 | 63 | 57 | 45 |
| 5/8 | 33 | 52 | 32 | 9/16 | 34 | 63 | 60 | 45 |
| 3/4 | 38 | 57 | 36 | 5/8 | 35 | 72 | 70 | 68 |
| 7/8 | 44 | 62 | 41 | 3/4 | 40 | 80 | 79 | 109 |
| 1 | 47 | 66 | 46 | 3/4 | 45 | 88 | 89 | 113 |
| 1-1/8 | 51 | 71 | 54 | 3/4 | 48 | 91 | 98 | 131 |
| 1-1/4 | 59 | 80 | 54 | 7/8 | 56 | 105 | 108 | 195 |
| 1-3/8 | 60 | 80 | 59 | 7/8 | 59 | 106 | 118 | 209 |
| 1-1/2 | 66 | 87 | 60 | 7/8 | 62 | 113 | 125 | 245 |
| 1-5/8 | 70 | 92 | 66 | 1 | 68 | 121 | 135 | 318 |
